Class A Fire Rated Roofing Technology
Burn-Shield Technology
Burn Sheild Technology is a patented innovation that offers fire resistance capable of achieving the highest level of fire ratings on steep-slope roofs, featured in Polystick XFR, a self-adhered high temp underlayment and Polyanchor XFR, a nailable underlayment, and PolyFresksko G FR, a granulated capsheet, the combination of these products provides an encompassing system to protect and encourage smoldering from fires and their debris.
Class A Fire Rated Products

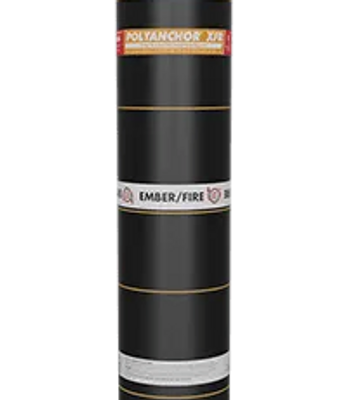

Polyanchor SFR - Ember Resistant Fire Rated Underlayment
Polyanchor XFR is a fire-rated dual purpose ember and water resistant underlayment. Polyanchor XFR features a plastomeric modified bitumen upper compound and a self-sealing SBS modified compound on the bottom. Polyglass’ patent-pending Burn-Shield Technology® provides superior ember resistance. Polyanchor XFR features a slip-resistant embedded mineral aggregate walking surface which contributes to the overall ember resistance of the membrane. The bottom surface is sanded to protect the self-sealing compound. Polyanchor XFR is ideally suited for mechanically attaching under clay/concrete tile roof covering systems where ember resistance is required or desired.
The result is a product which provides water resistance and Class A fire protection in a single layer, instead of the typical solution requiring multiple layers to achieve the same result. This translates to labor and material cost savings which ultimately benefits the building owner and contractor. The building occupants can enjoy peace of mind knowing that Polyanchor XFR is providing safety and protection of their possessions.
Features & Benefits
- Superior protection against fire spread/penetration and ember resistance in systems tested under UL 790
- Helps achieve UL Class A for Combustible Decks a using a single layer*
- Robust 80 mils (2 mm) of waterproofing rubberized asphalt
- Self-Adhered with split release film for ease of application
- Fiberglass reinforced for added strength and dimensional stability
- Skid-resistant top surface with max 180 days exposure
- Dedicated side lap for consistently strong seams
- Approved for applications up to 265°F
- Up to 30 year warranty
(Reference Polyglass Warranties Terms & Conditions) - Unlimited Slope. Refer to published UL product listings (TGFU.R25992) for specific fire rated assemblies.
Polystick XFR
Polystick XFR is a self-adhered waterproofing underlayment with superior fire resistance designed for metal roof coverings. Utilizing ADESO® dual-compound self-adhered technology, Polystick XFR features a polymer modified bitumen upper compound and a proprietary self-adhesive SBS (elastomeric) compound on the bottom. A split release film that protects the self adhesive compound allows for easy application.
Polyglass’ patented Burn-Shield Technology® provides superior fire and ember resistance in areas where this is required or desired. With a temperature resistance of up to 265°F, Polystick XFR is ideally suited for high temperature roof covering systems such as steel, aluminum, or copper panels. Polystick XFR features a cavitated anti-skid top film surface which can be exposed up to 180 days.
Can be installed as part of a multi-ply underlayment system when used as a secondary layer above Polystick MTS Plus or a two-ply Polystick XFR assembly.
Features & Benefits
• Patented Burn-Shield Technology provides superior ember resistance
• Meets CA code requirements – Class A Fire Rated ember resistant underlayment for WUI
(Wildland Urban Interface)*
• Fiberglass mat provides increased strength and fire resistance
• Mineral aggregate surface engineered for superior slip resistance
• Tough plastomeric modified asphalt top compound for tile stacking
• Self-sealing elastomeric modified asphalt bottom compound
• Up to 180 day exposure

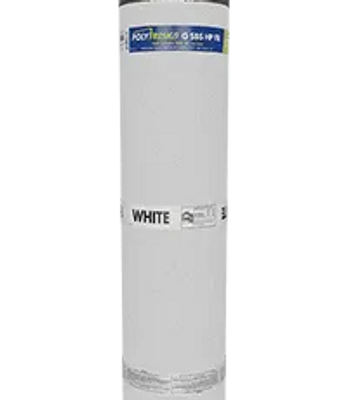

Polyfresko® G SBS HP FR
Polyfresko G SBS HP FR is a premium Styrene-Butadiene-Styrene (SBS) granulated cap sheet with fire retardant additives for use in low-slope roofing. Polyfresko G SBS HP FR is constructed with a high performance non-woven polyester reinforcement that provides flexibility and dimensional stability as well as excellent tear and puncture resistance. Polyfresko G SBS HP FR has a film bottom surface for heat welding application.
Featuring patented CURE Technology®, Polyfresko G SBS HP FR has a highly reflective granule surface which meets, or exceeds most standards for cool roofing. CURE Technology features an innovative thin film technology attributing to exceptional granule retention, minimal staining, scuff resistance and UV stabilization for long-term durability and performance.
Polyfresko G SBS HP FR can be used as part of a Polyglass warranted multi-ply system, when combined with Elastoflex S6 or other approved Polyglass base sheets.
FEATURES AND BENEFITS
- Suitable for most cool roof specifications; Solar Reflectance Index (SRI) Initial: 96, Aged: 82.
- Demonstrated to maintain exceptional reflectivity over time.
- Superior polyester mat for excellent tear and puncture resistance.
- Resistance to discoloration and scuffing.
- Exceptional granule retention; 0.11 g loss vs. ASTM max 2.0 g.
- FASTLap® granule free end lap provides faster, stronger seams.
Polyfresko G HP FR
Polyfresko G HP FR is a premium Atactic Polypropylene (APP) granulated cap sheet with fire retardant additives for use in low-slope roofing. Polyfresko G HP FR is constructed with a high performance non-woven polyester reinforcement that provides flexibility and dimensional stability as well as exceptional tear and puncture resistance. Polyfresko G HP FR has a film bottom surface for heat welding application.
Featuring patented CURE Technology®, Polyfresko G HP FR has a highly reflective granule surface which meets, or exceeds most standards for cool roofing. CURE Technology features an innovative thin film technology attributing to exceptional granule retention, minimal staining, scuff resistance and UV stabilization for long-term durability and performance.
Polyfresko G HP FR can be used as part of a Polyglass warranted multi-ply system, when combined with Polyflex® or other approved Polyglass base sheets.
Polyfresko G SA FR
Polyfresko G SA FR is a self-adhered Atactic Polypropylene (APP) granulated cap sheet with fire retardant additives for use in low-slope roofing. Polyfresko G SA FR is manufactured using Polyglass’ patented ADESO® Dual-Compound Self-Adhered Technology. With this technology, a “true” plastomeric compound is applied to the top of the membrane and an aggressive, proprietary, self-adhesive compound is applied to the bottom. Polyfresko G SA FR is constructed with a superior non-woven polyester reinforcement that provides flexibility and dimensional stability as well as excellent tear and puncture resistance.
Featuring patented CURE Technology®, Polyfresko G SA FR has a highly reflective granule surface which meets, or exceeds most standards for cool roofing. CURE Technology features an innovative thin film technology attributing to exceptional granule retention, minimal staining, scuff resistance and UV stabilization for long-term durability and performance.
Polyfresko G SA FR also features SEALLap® ULTRA, a granule-free side lap with self-adhesive compound, granule free end lap. Each of these patented features provide for greater ease of application as well as improved long-term performance.
Polyfresko G SA FR can be used as part of a Polyglass warranted multi-ply system, when combined with Elastoflex SA V Plus or other approved Polyglass base sheets.

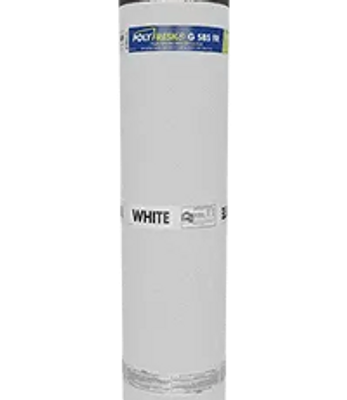

Polyfresko G SBS FR
Polyfresko G SBS FR is a premium Styrene-Butadiene-Styrene (SBS) granulated cap sheet is a fire resistant building material for use in low-slope roofing. Polyfresko G SBS FR is constructed with a superior non-woven polyester reinforcement that provides flexibility and dimensional stability as well as excellent tear and puncture resistance. Polyfresko G SBS FR has a film bottom surface for heat welding application.
Featuring patented CURE Technology®, Polyfresko G SBS FR has a highly reflective granule surface which meets, or exceeds most standards for cool roofing. CURE Technology features an innovative thin film technology attributing to exceptional granule retention, minimal staining, scuff resistance and UV stabilization for long-term durability and performance.
Polyfresko G SBS FR can be used as part of a Polyglass warranted multi-ply system, when combined with Elastoflex S6 or other approved Polyglass base sheets.

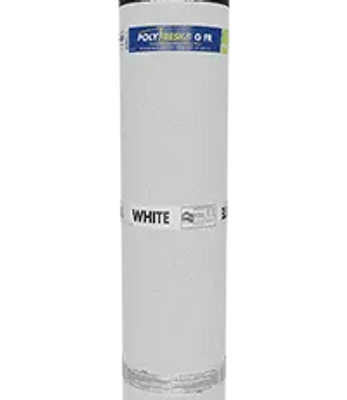

Polyfresko G FR
Polyfresko G FR is a premium Atactic Polypropylene (APP) granulated cap sheet with fire retardant additives for use in low-slope roofing. Polyfresko G FR is constructed with a superior non-woven polyester reinforcement that provides flexibility and dimensional stability as well as excellent tear and puncture resistance. Polyfresko G FR has a film bottom surface for heat welding application.
Featuring patented CURE Technology®, Polyfresko G FR has a highly reflective granule surface which meets, or exceeds most standards for cool roofing. CURE Technology features an innovative thin film technology attributing to exceptional granule retention, minimal staining, scuff resistance and UV stabilization for long-term durability and performance.
Polyfresko G FR can be used as part of a Polyglass warranted multi-ply system, when combined with Polyflex® or other approved Polyglass base sheets.
